Spirit S530 HD
S530HD is a 5.3-meter boat featuring a spacious cockpit, seaworthy hull, and excellent speed and handling performance with engines ranging from 70 to 100 hp. The boat is equipped with a reinforced hull and can be customized to meet the customer’s specific needs. The tubes are filled with closed-cell polyethylene foam, which provides additional rigidity, impact resistance, and ensures buoyancy even in the event of damage.
Length5,3 m
Width2,31 m
Bare weight285 kg
Shaft lengthL/20"/508 cm
Max. power100 h.p.
Capacity7 ppl

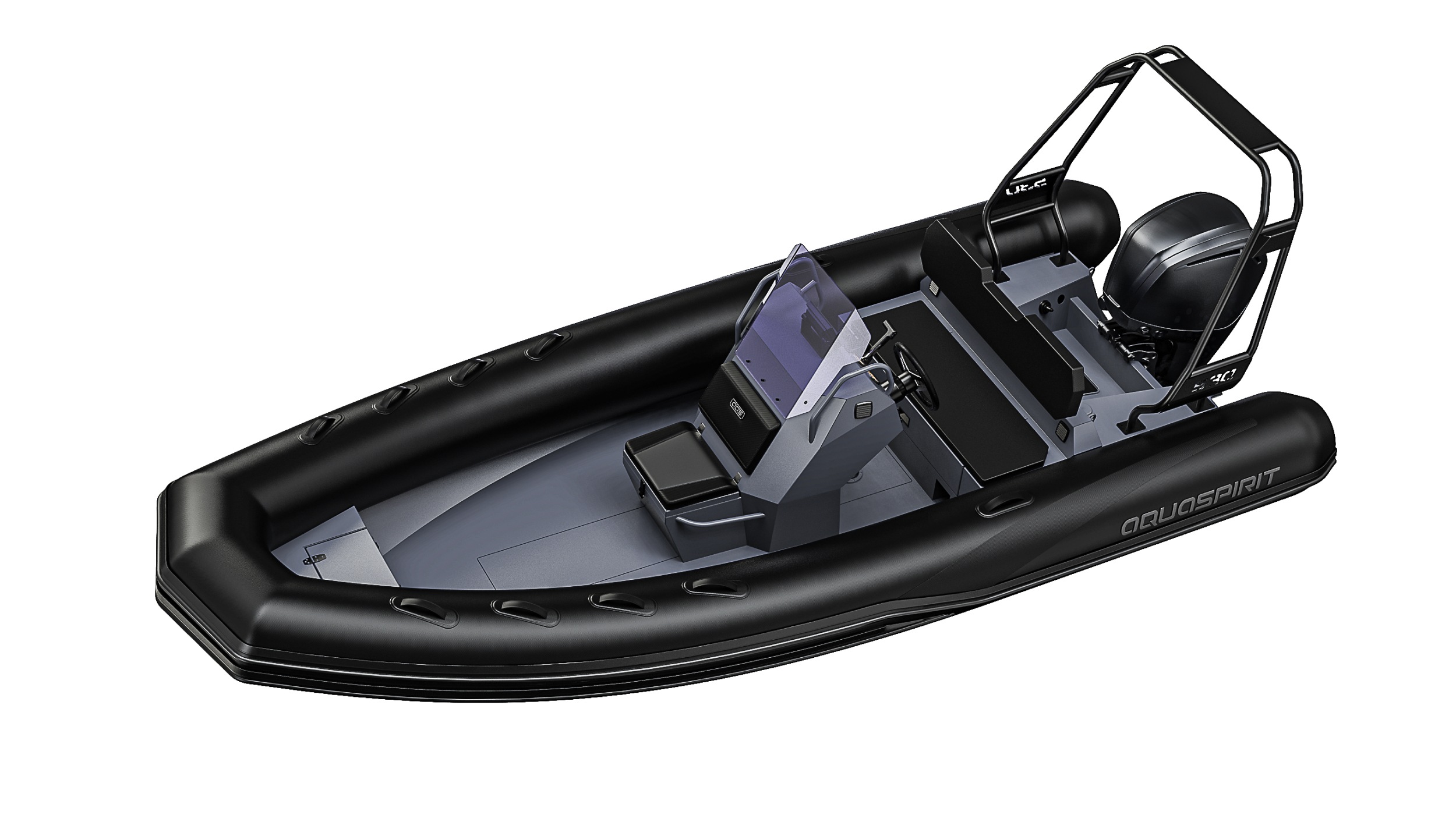

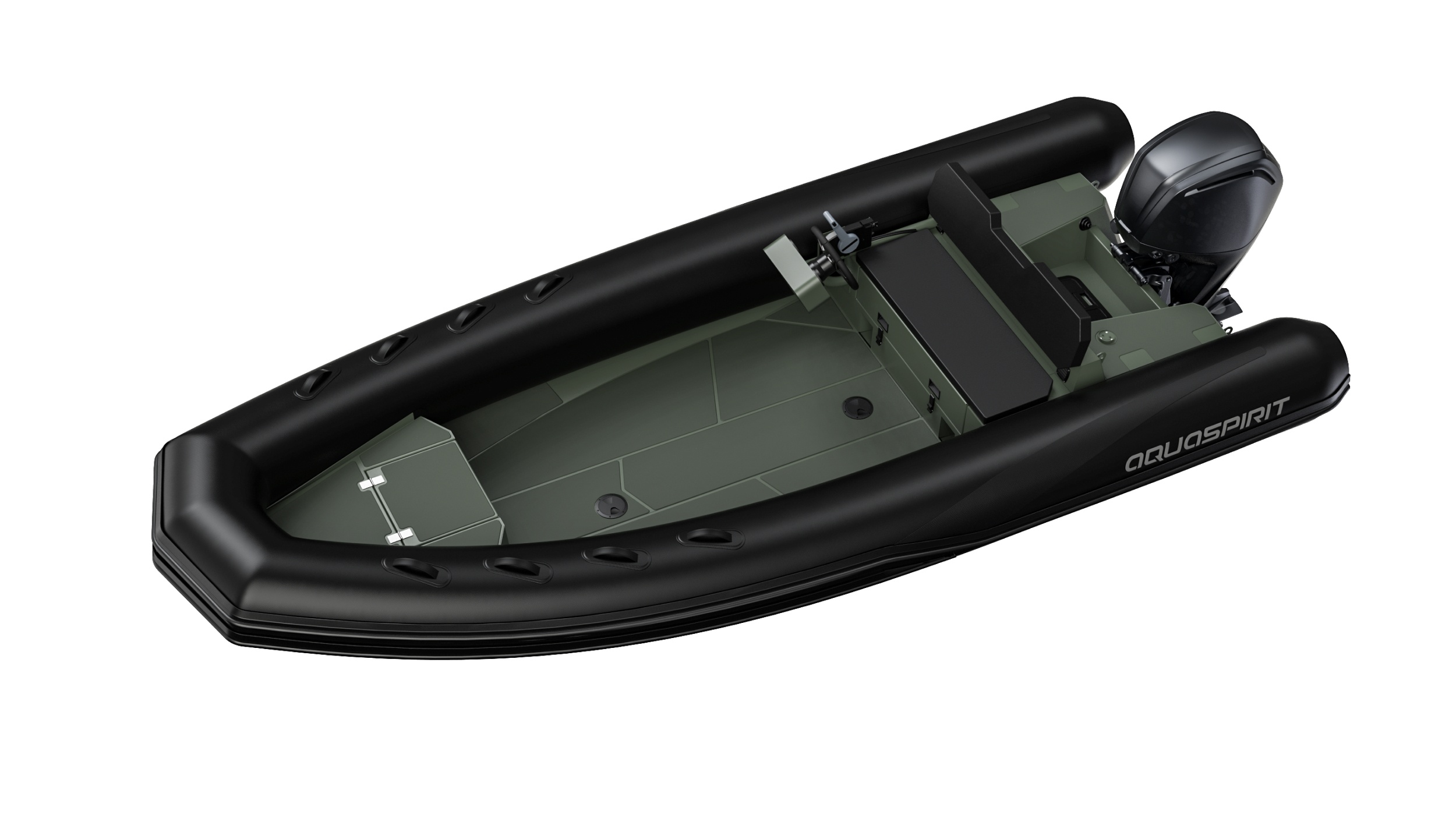

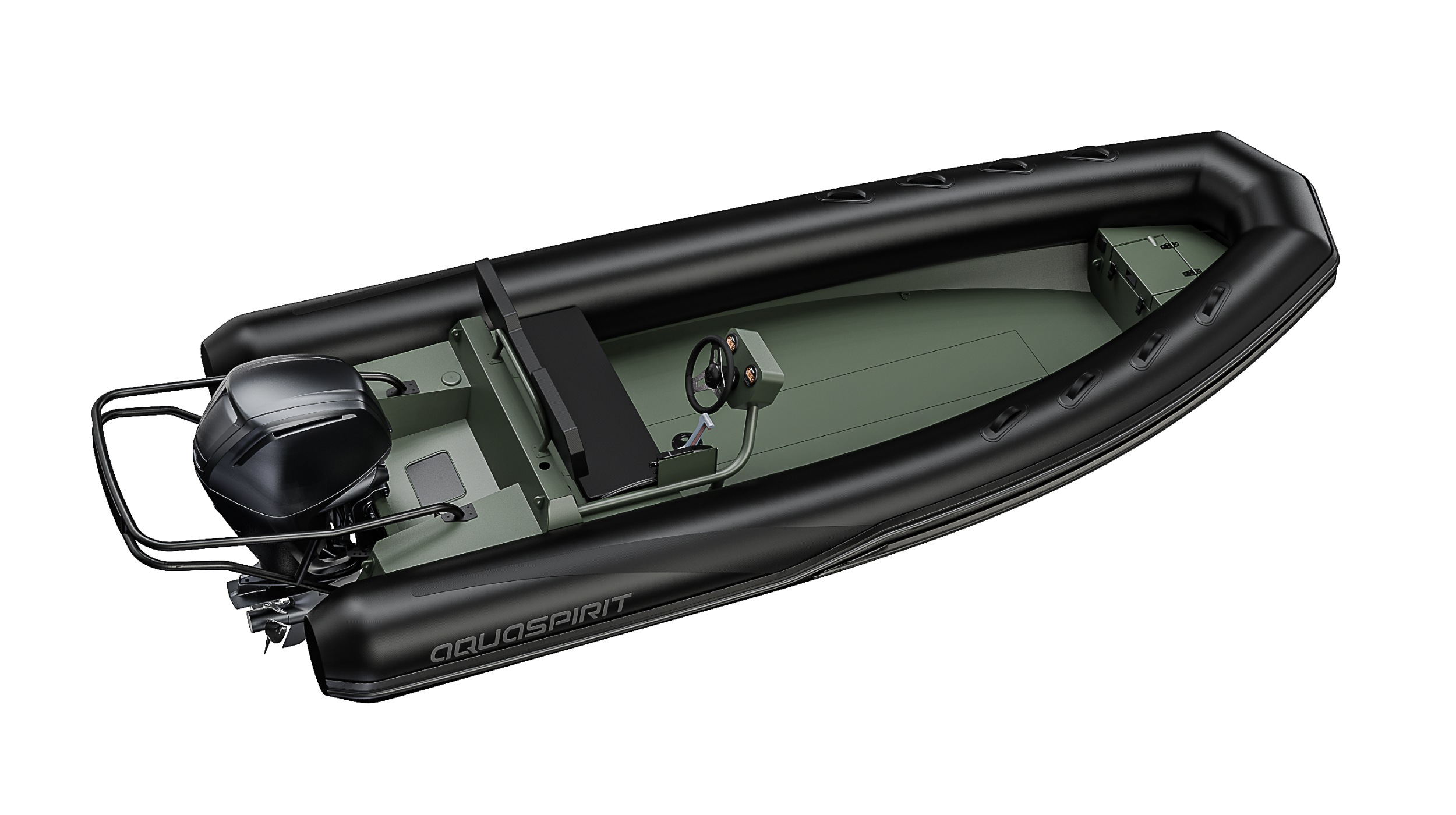

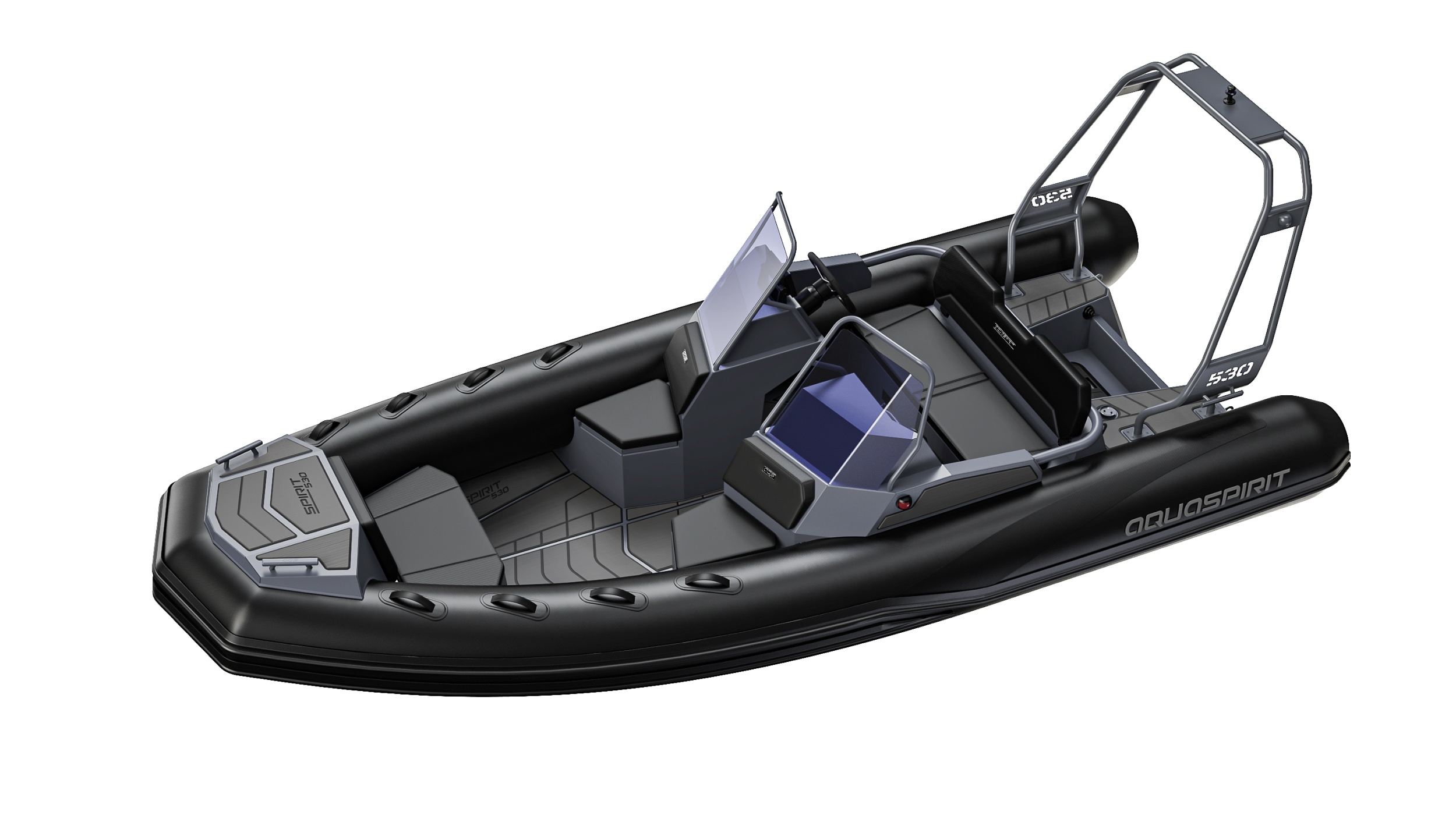

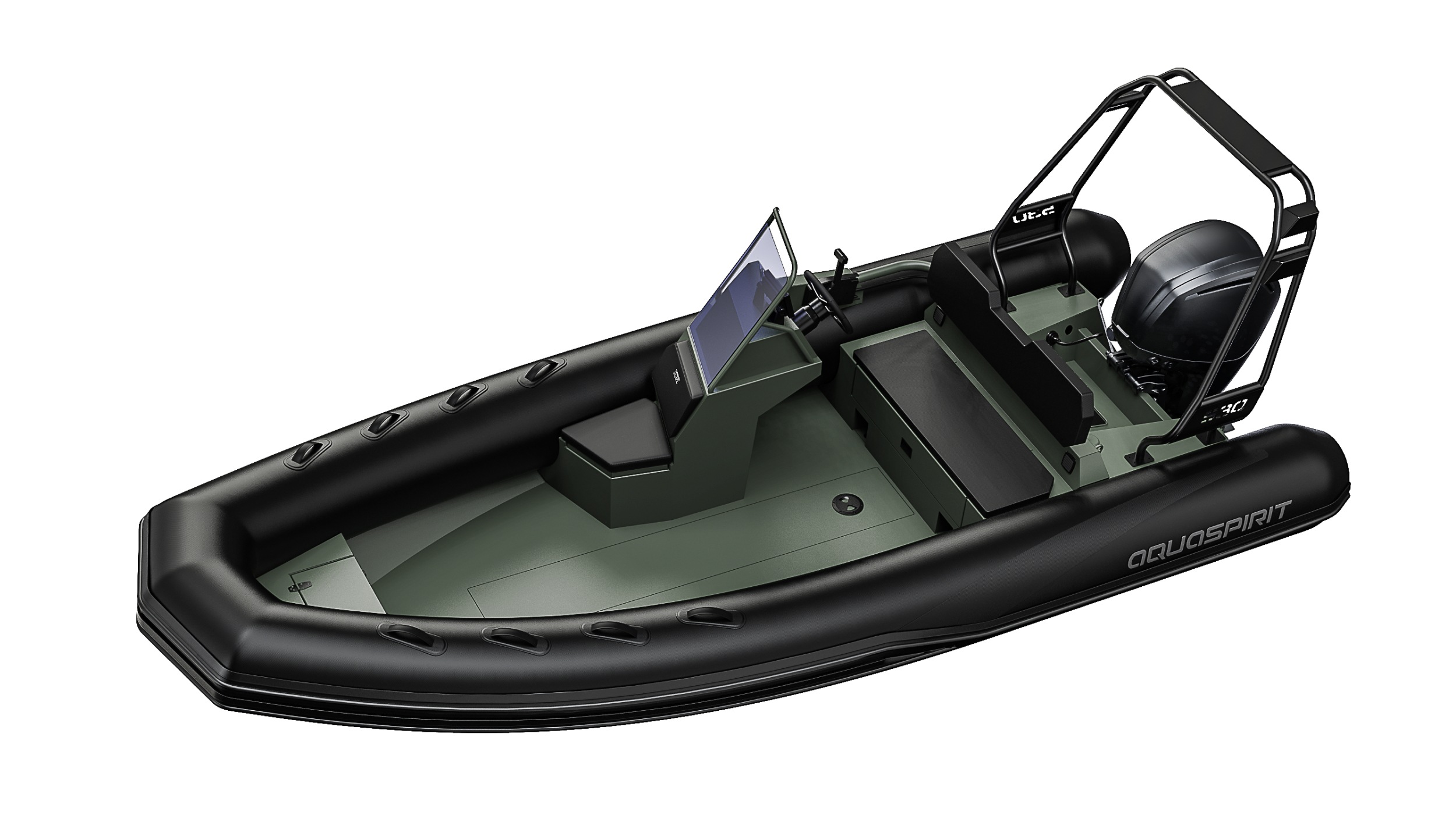

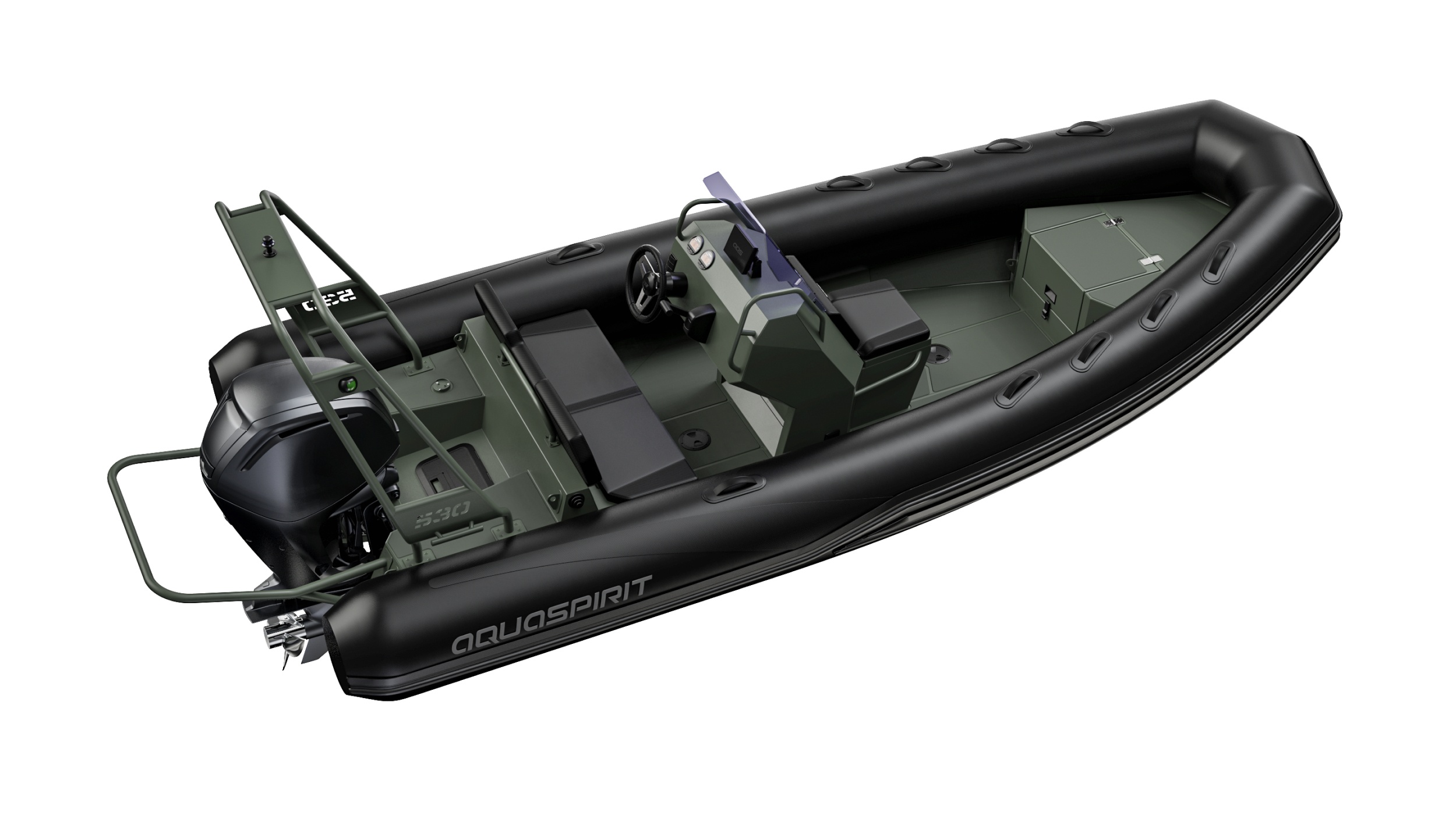

General views
СUSTOM SOLUTIONS
Version - 01
Attention to details
Video
Technical data
Length o.a, m.5,3
Width o.a, m.2,31
Cockpit width, m.
Draft (base load), m.0,37
Bare weight, kg.285
Payload, kg.538
Loaded displacement mass, kg.1538
Max. load, kg.1000
Capacity, ppl.7
Tube diameter max., m.
Tube material Pvc/Hypalon. gsm1400
Number of chambers
Max. engine power, kW/HP73.6/100
Shaft lengthL/20"/508
Fuel tank capacity62
CategoryC
Hull materialEN AW 5083 H111 (AlMg5)
